AIMA: Key West Ebike

$1,799.00

AIMA

Key West, FL – The southern tip of the US. Where One Road Ends, Another Begins.

It's the end of the road for most, but it's right where the Key West's journey begins! At 54lbs, the Key West is the lightest ebike in our line up and is ready for you to embark on your next journey. Take it to the beach, cruise around your neighborhood, or crush your morning commute, the Key West does it all.

Lightweight for ease of putting on your bike rack or in the back of your truck. Brand new BAFANG TFT Smart Display keeps you connected and in control of customizing your riding experience. Integrated lighting and turn signals keep you seen and our signature oversized 203mm brake rotors help you stop on a dime. The Key West keeps you comfortable with an adjustable stem and ergonomic hand grips.

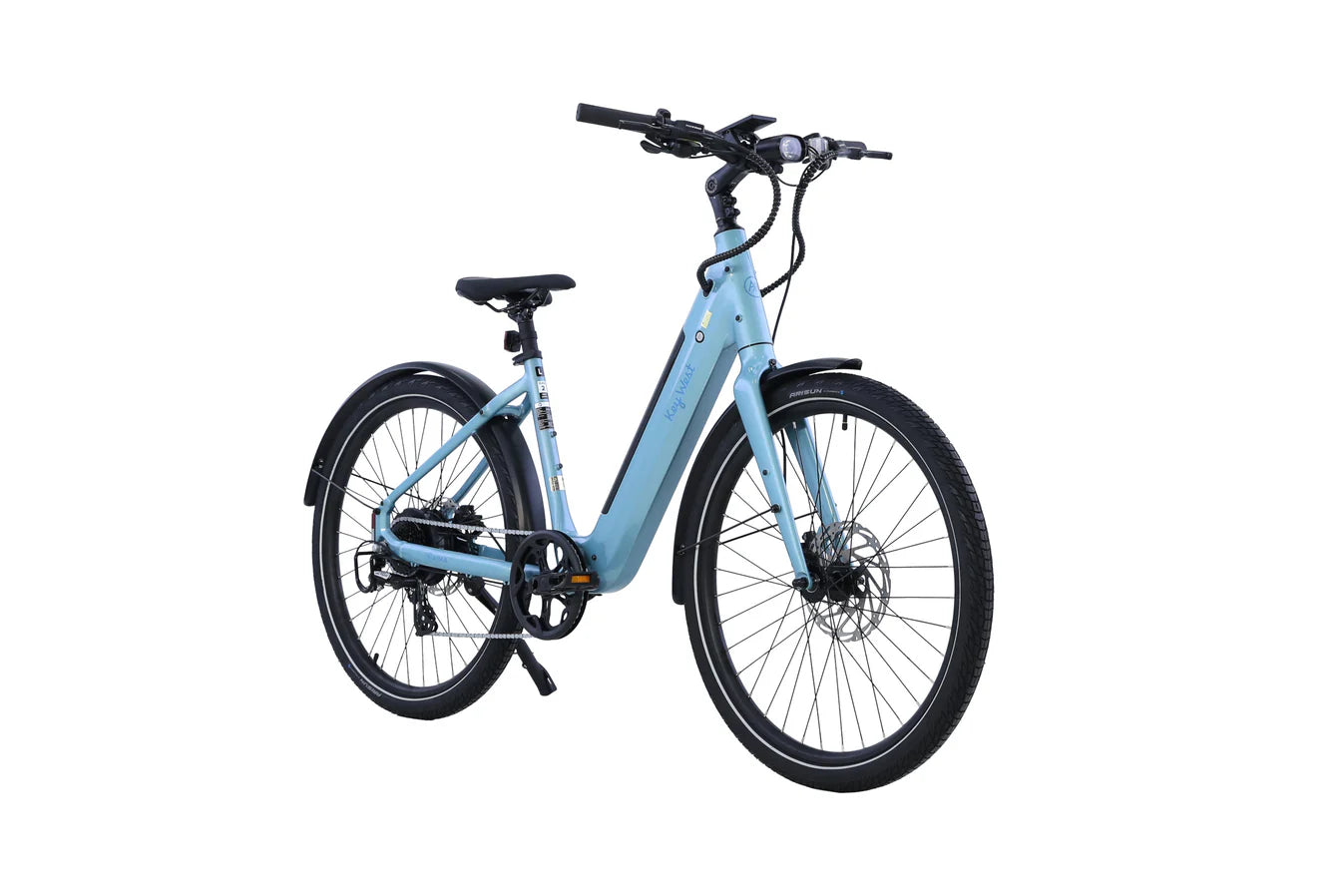

Key West is the next generation of lightweight cruiser ebikes made by AIMA!

Size

Color

Why purchase from a local bike shop?

Ride Before You Buy with our FREE test-ride ebike consultations!
Professionally Assembled & Tuned utilizing our 40-point checklist and recommended 18-point detailed safety check - Included with EVERY Ebike on our Showroom floor. ($180 value)
As Signature Dealers & Brand Partners, we match Manufacturers online ebike prices and advertised promos.
In-Store Purchase with Local Pick-up from our shop in Darmstadt, IN (No Shipping).
Local Delivery Available within 75 miles of Evansville, IN (Additional costs apply depending on location).
Ask about our Rider Packages!

Technical Overview

An ebike's battery life is influenced by several factors that can affect its maximum range. While our ebikes can achieve up to 60 miles of range under ideal riding conditions, range can vary from 20 - 60 miles based on many contributing factors.

Here's a list of the most common factors that affect range, as well as what you can do to maximize your riding time.

Pedal Assist: Higher levels of pedal assist will allow for an easier ride, but will also draw more power from the battery. Lower pedal assist levels are better for getting as many miles as possible out of your battery.

Average Cruising Speed: Riding slower will decrease the amount of energy you lose to wind resistance as the bike pushes you forward. Slower speeds will extend battery life.

Tire Pressure: Keeping your tires inflated to the recommended pressure can help increase your range. Maintaining a proper tire pressure not only increases your range, but also helps prevent pinch flats! For most riding situations, checking your tire pressure at least once a week will keep your ride safe and energy-efficient.

Load Weight: Carrying a heavier load can decrease your range. This includes the total load of both the weight of the rider and any cargo you may be carrying. More weight takes more time and energy to get up to speed, negatively affecting your range. It's best to keep loads light whenever possible if you're looking to extend your range.

Terrain & Elevation: In general, riding over smooth and flat terrain will give you a longer range. Hills and rough terrain can greatly impact your maximum range, especially on higher assist levels.

Wind: That's right! The wind can affect your battery range too! Riding into a headwind will decrease your range, but if you're able to catch a tailwind, you'll actually see that you'll gain more range! Be mindful of which way the wind is blowing when you are riding. If you've been riding in a tailwind, turning around will take more energy from the battery to get you home.

Ambient Temperature: Riding in cold weather will impact the battery's ability to function optimally. A good rule of thumb is, if you're comfortable, then the battery is comfortable too. This also goes for storing the battery too!

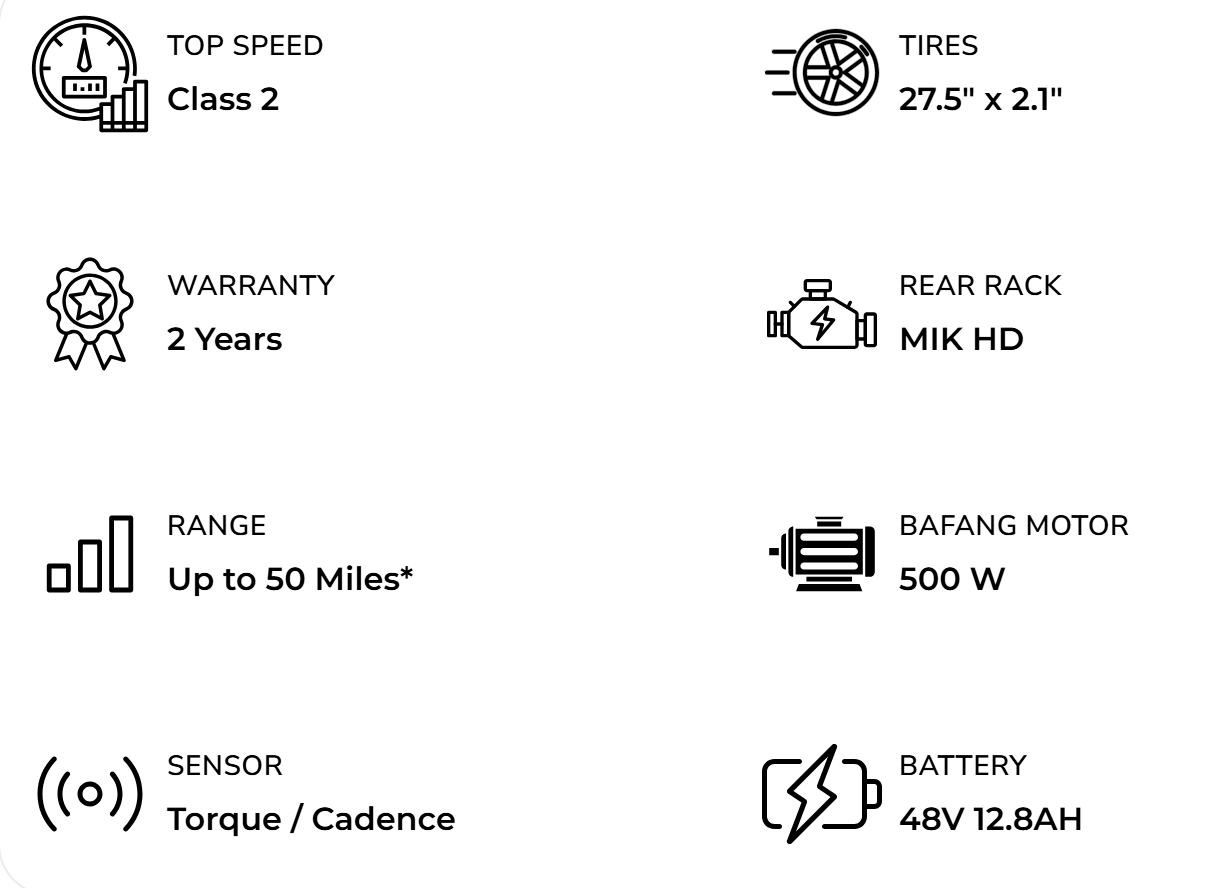

Technical Specifications

MOTOR

500W, 48V Brushless Rear Hub Motor

THROTTLE

Throttle on Demand

DISPLAY

BAFANG C010 4.0 inch TFT Smart Display w/Navigation,
Incoming call & Text message alerts

SPEED

Up to 28 MPH Pedal Assist, 20 MPH Throttle

BATTERY

Removable Internal Lithium-ion 48V, 12.8Ah (614Wh)

LIGHTING

Integrated Headlight, Tail Light, and Turn Signals

PEDAL SENSOR

Customizable w/Torque & Cadence Modes

PEDAL ASSIST

5 PAS Levels

CHARGER

48V, 3 Amp Fast Charger, about 5 Hours to a Full Charge

RANGE

24 to 50 Miles

FRAME

6061 Single-Butted Aluminum Alloy Frame with Internal
Battery

WEIGHT

54 lbs. (w/o fenders)

PEDALS

9/16" Alloy Platform

FORK

Lightweight Rigid Aluminum Fork

WEIGHT LIMIT

320 lbs.

KICKSTAND

Aluminum Alloy Kickstand

CRANKSET

170mm w/ 46T Chainring

SHIFTER

Shimano 8 Speed

CASSETTE

8 Speed, 12-32T

BRAKES

Tektro Hydraulic Disc Brakes, 203 mm Rotors

CHAIN

8 Speed

RIMS

Double Wall Aluminum Alloy

SPOKES

Black Stainless 12G Front / 12G Rear

TUBES

Butyl Rubber

FRONT HUB

Aluminum Alloy Disc

TIRES

27.5" x 2.1"

SADDLE

AIMA Lightweight Performance Saddle

SEATPOST

Aluminum Alloy, 30.9mm 2-Bolt Clamp, 300mm

STEM

Threadless, 31.8mm, 10°-80° Rise, Length: S: 90mm | M:
110mm

SEAT CLAMP

34.9mm Quick Release

HANDLEBARS

Aluminum Alloy Double Wall, 31.8mm, 680mm

HEADSET

Sealed Bearing Headset

GRIPS

Ergonomic Comfort
