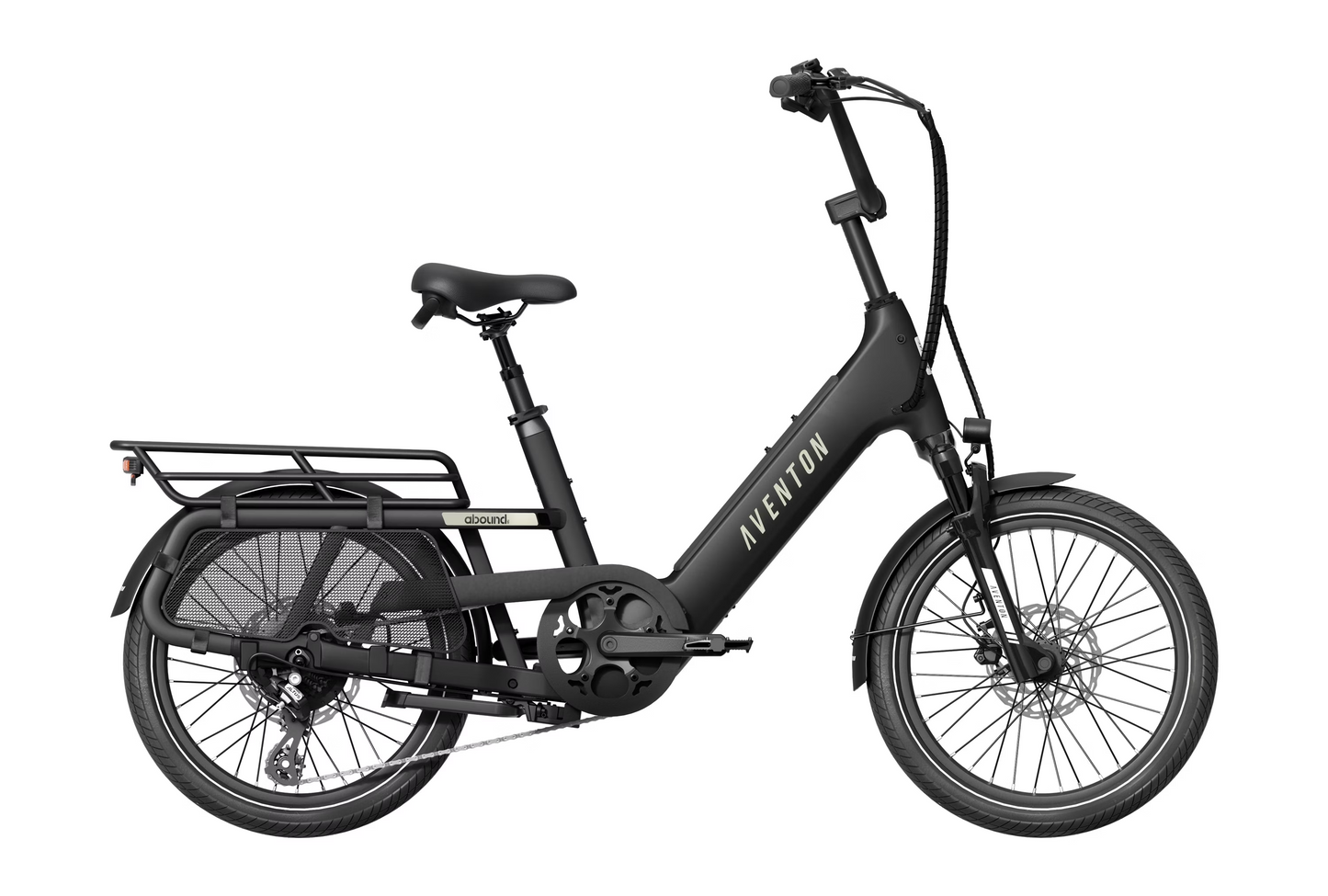

AVENTON: ABOUND SR Ebike

$1,899.00

Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security† and GPS† features give you total peace of mind.

Outfitted with an adjustable quill stem, suspension seat, and cutting-edge theft deterrent features†, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road.

It’s SRsly fun.

Size

Color

Technical Specifications:

General Info

Weight: 80 lbs
Total Weight Limit: 440 lbs
Rider Height: 4'11" – 6'3"
Ebike Class: Class 2 (convertible to Class 1)
Range: Up to 60 miles
Safety Certifications: UL 2849, UL 2271
Ideal Use: Cargo & Utility
Folding: No

Cockpit

Saddle: Aventon saddle
Seatpost: Suspension seatpost, 50 mm travel
Handlebars: BMX-style / aluminum
Stem: Adjustable quill stem
Grips: Aventon lock-on

Frameset

Frame: 6061 Aluminum Alloy with internal battery, one-piece die-cast aluminum front triangle
Fork: Suspension fork, ~50 mm travel with lockout
Frame Style: Step-Through (compact cargo)

Wheelset

Front Wheel: 20" double-wall aluminum
Rear Wheel: 20" double-wall aluminum, hub motor
Tires: 20 × 3.0" Innova urban with reflective sidewalls

Brakes

Front Brake: Tektro HD-E3520 hydraulic disc
Rear Brake: Tektro HD-E3520 hydraulic disc
Front Rotor: 180 mm 6-bolt
Rear Rotor: 203 mm 6-bolt

Drivetrain

Rear Derailleur: Shimano Altus 8-speed
Shifter: Shimano 8-speed trigger
Cassette: 8-speed
Chain: 8-speed 122L
Chainring: 52T
Crankset: 3-piece, 165 mm

Ebike System

Motor: Shengyi 36V 750W hub drive (1188W peak)
Motor Torque: 80 Nm
Display: Aventon BC147
Battery: Removable internal lithium-ion, 36V 20Ah 733Wh, LG 21700 cells
Battery Weight: 8.7 lbs
Controller: 36V 33A
Throttle: Aventon left-hand handlebar mounted
Sensors: Double-sided bottom bracket torque sensor (Sensor Switch compatible)
Charger: 42V / 4A
Charge Time: ~5 hours
Lights: Front and rear integrated with turn signals
Smart Features: ACU with 4G/GPS, remote lock, geofencing, keyless battery, Ride Tune, Over-the-Air Updates
