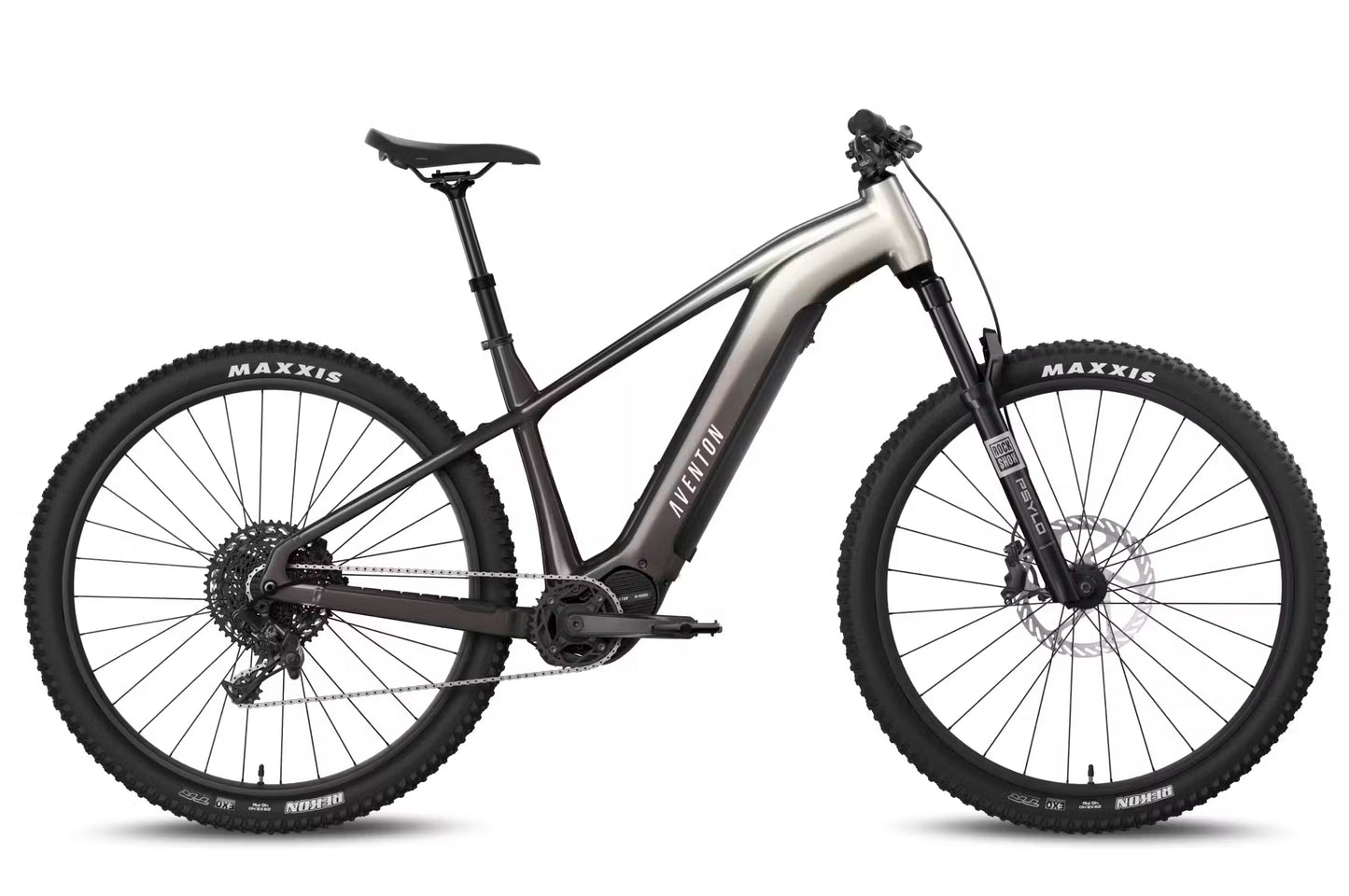

AVENTON: Ramblas ADV Ebike

$2,899.00

Carve out the uncommon route with Ramblas ADV, Aventon’s electric hardtail mountain bike. Rugged and reliable, this all-terrain ebike offers the ultimate comfort on mountain trails or city streets. Pursue any adventure with a range of up to 90 miles to roam, ramble, and revel in the dynamic side of the ride.

Size

Color

Technical Specifications:

General Info

Weight: 54 lbs
Total Weight Limit: 300 lbs
Rider Height: 5'5" - 6'5"
Box Size: 59 x 13 x 36
Water Resistance: Bike - IPX6 // Motor - IP67
Range: Up to 90 miles
Bike Safety Certifications: TUV Certified in accordance with UL 2849 / UL 2271
Battery Safety Certifications:TUV Certified in accordance with UL 2849 / UL 2271
Ideal Use:Mountain Biking, Urban Riding

Cockpit

Saddle: Aventon Saddle
Seatpost: Manic LC 150mm travel for size M-XL. 31.6mm ø. 395mm length
Seatpost Clamp: 34.9mm
Handlebars: 760mm width, 35mm clamp diameter, 33mm rise, 3* upsweep, 9* backsweep.
Grips: Aventon Lock on grips
Headset: T51Ks 28.6*56-56*39.8/ H:23.4mm

Frameset

Frame: 6061 Single-Butted Aluminum Alloy
Fork: Rockshox Psylo Silver R, 35mm Stanchions, coil, 44mm offset, 15x110mm BOOST, 1.5"tapered steerer tube, Rebound adjust
Rear Spacing: 12x148mm
Fork Spacing: 15x110mm

Wheelset

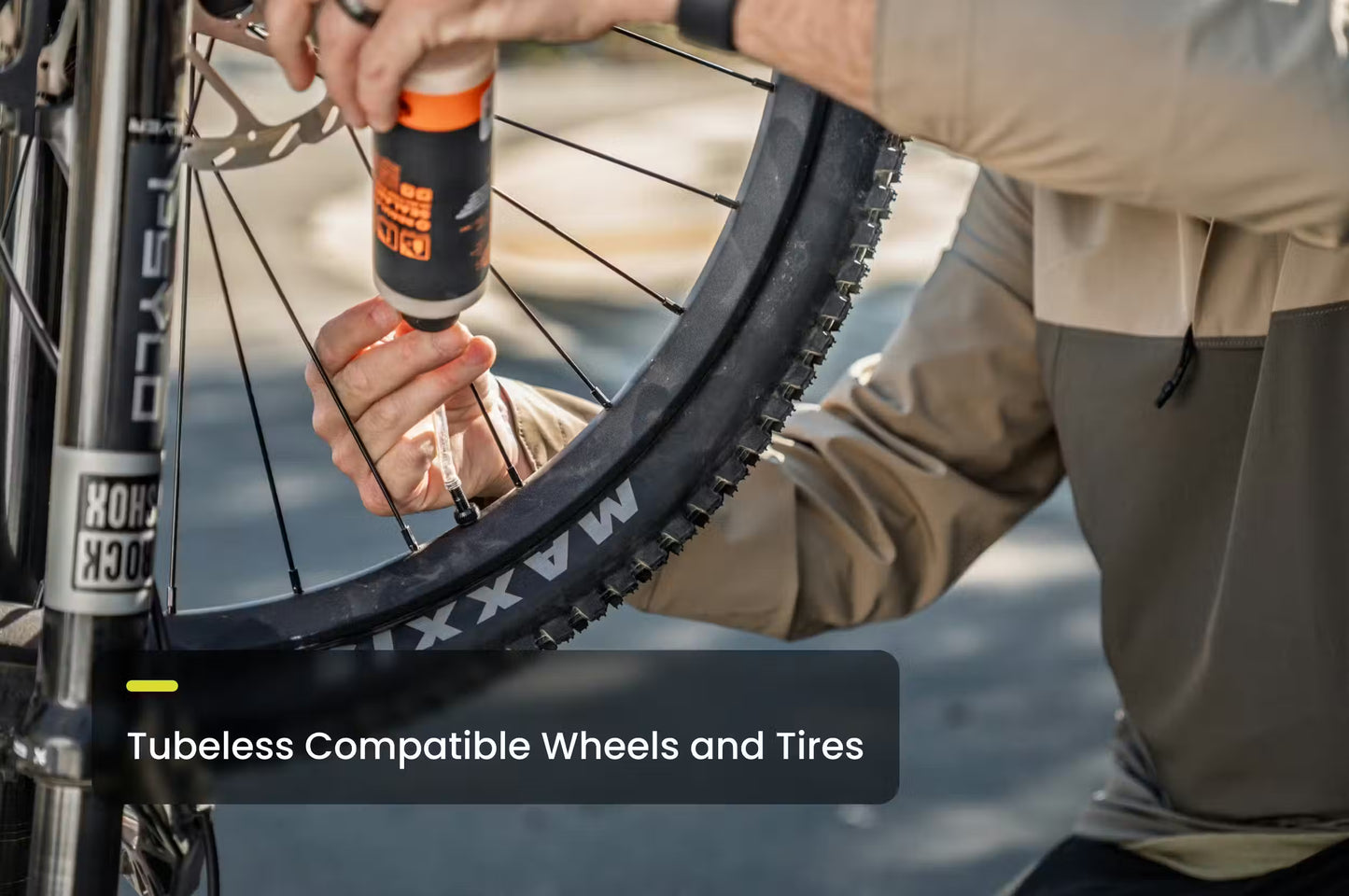

Rear Wheel: 29in, 32hole, BOOST Thru Axle, Presta Valve, Tubeless Ready
Front Wheel:29in, 32hole, BOOST Thru Axle, Presta Valve, Tubeless Ready
Tires: Maxxis Rekon 29"x2.4" Tubeless Ready

Brakes

Front Brake: SRAM DB6 4-Piston Hydraulic Disc Brakes
Rear Brake: SRAM DB6 4-Piston Hydraulic Disc Brakes
Rear Brake Rotor: SRAM G2 200mm
Front Brake Rotor: SRAM G2 200mm

Drivetrain

Rear Derailleur: SRAM NX 12-Speed
Shifter: SRAM NX
Chain: SRAM 12-Speed
Cassette: SRAM SX 12-Speed 10-50T
Chainring: SRAM 34T
Chainring BCD: 104
Crankset: 165mm ISIS Splined
Bottom Bracket:N/A
Pedals: 9/16" Alloy Platform

Ebike System

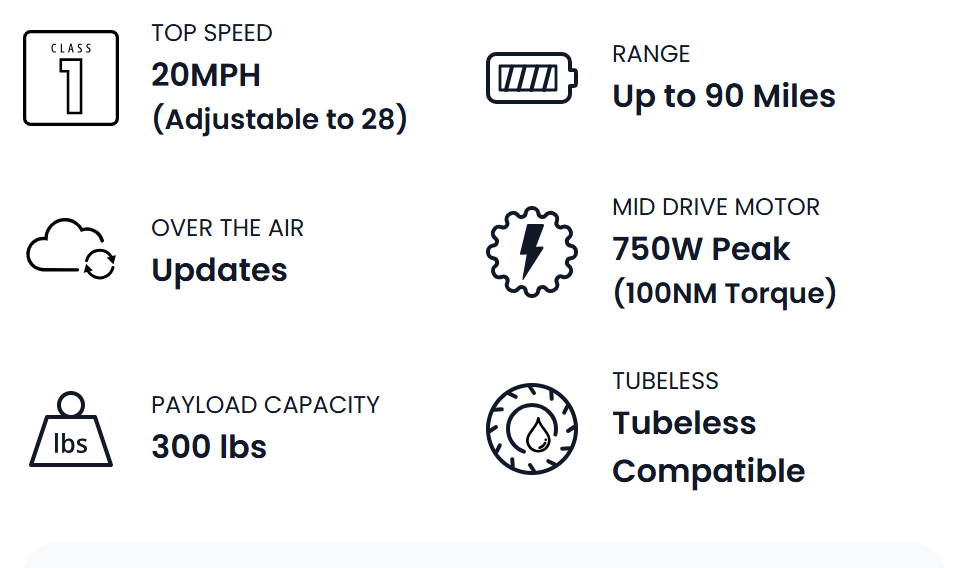

Speed: Class 1

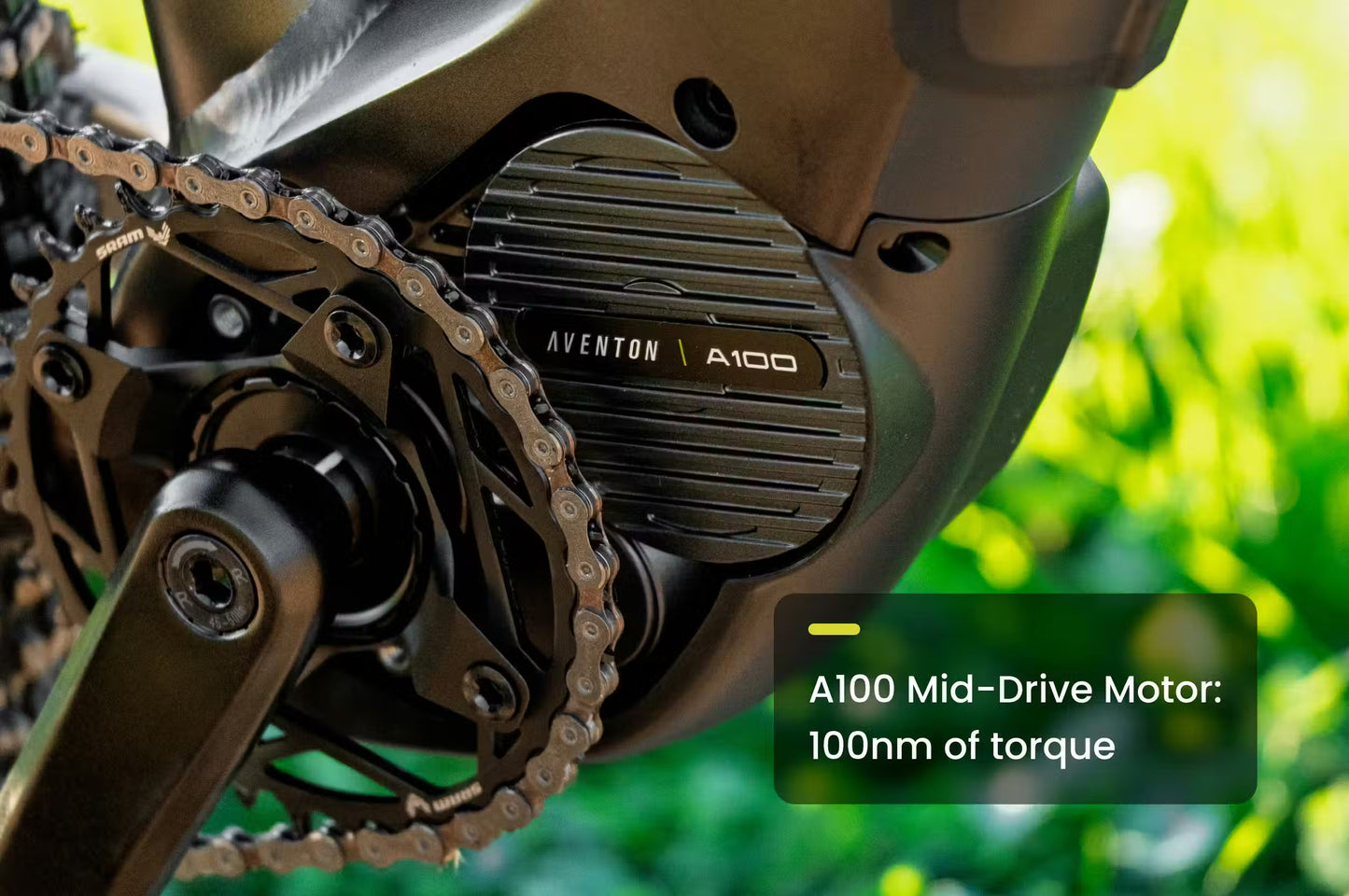

Motor: Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
Motor Torque: 100Nm
Motor Power: 250W (750W Peak)
Display: Aventon BC201
Battery: Aventon 708 WH. 36V LG 21700 cells
Battery Weight: 8.44 lbs
Throttle: N/A
Sensors: Double Sided Torque Sensor Integrated in Motor
Charger: 42V 4A charger
Charging time from 0% to 100%: 5 hours
Lights: Integrated
