AVENTON: Level 4 ADV Ebike

$2,799.00

The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control. Powered by Aventon’s Ultro S motor with 100Nm of torque and paired with a Shimano CUES 10-speed drivetrain featuring Aventon’s E-Shifter and Autoshift technology, it delivers a natural pedaling feel and efficient power delivery across varied terrain. The ADV adds lightweight balance, responsive handling, and a premium feel, making it ideal for riders who want performance and sophistication without complexity. For those seeking the next level of connection, comfort, and control, the Level ADV represents the pinnacle of Aventon’s commuter design.

Color

Size

Technical Specifications:

General Info

Weight: 61 lbs
Total Weight Limit: 300 lbs
Ebike Class: Class 1 (convertible to Class 2 and/or Class 3)
Water Resistance: Bike IPX6 // Motor IP67
Range: Up to 110 miles
Safety Certifications: UL 2849, UL 2271
Rider Height: Medium 5'3"–5'10" | Large 5'10"–6'4" | Extra Large 6'4"–6'7"
Ideal Use: Commuting
Max Speed: 28 MPH

Cockpit

Saddle: Aventon Saddle
Seatpost: Aventon Suspension Post, 30.9 mm, 50 mm travel, 400 mm length
Seatpost Clamp: 34.9 mm
Handlebars: 31.8 mm, 680 mm width, 30 mm rise
Grips: Aventon lock-on

Frameset

Frame: 6061 Aluminum
Fork: 100 mm travel, adjustable coil spring with preload + lockout, 15×100 mm thru-axle, 43 mm offset, tapered steerer
Rear Spacing: 135 mm
Fork Spacing: 100 mm
Frame Style: Step-Over

Wheelset

Front Wheel: 27.5" double-wall aluminum, 36H
Rear Wheel: 27.5" double-wall aluminum, 36H
Tires: Kenda K1052, 27.5 × 2.2"

Brakes

Front Brake: Tektro HD-M3120 2-piston hydraulic disc
Rear Brake: Tektro HD-M3120 2-piston hydraulic disc
Rotors: 180 mm 6-bolt

Drivetrain

Rear Derailleur: Shimano CUES 10-speed

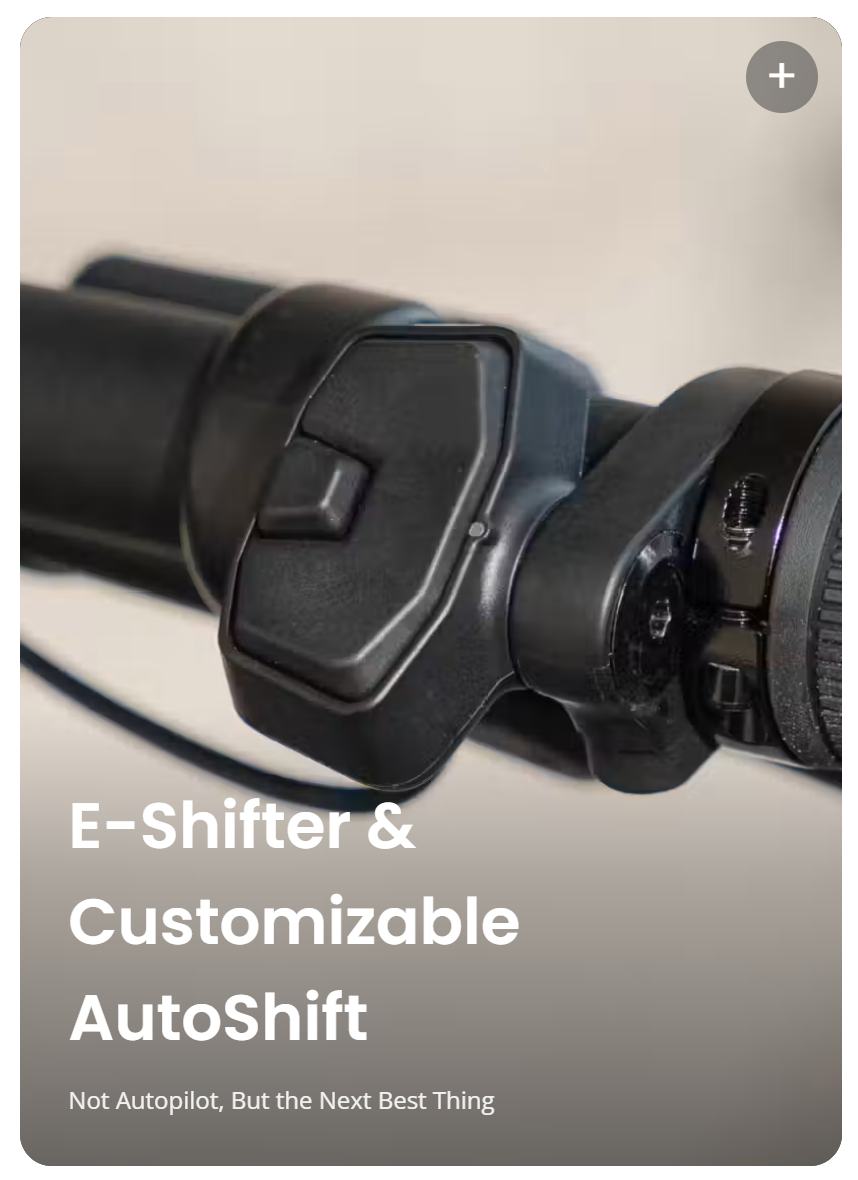

Shifter: E-Shifter
Cassette: Shimano CUES 10-speed 11-39T
Chain: 9/10/11-speed 126L
Chainring: 48T
Crankset: 165 mm ISIS splined
Pedals: 9/16" composite platform

Ebike System

Motor: Aventon Ultro S mid-drive, 100 Nm torque, 750W peak power
Motor Torque: 100 Nm
Motor Power: 750W peak
Display: A280 Center Display
Battery: Removable lithium-ion, 36V 20Ah 800Wh, Samsung 21700 58E cells
Battery Weight: 8.7 lbs
Throttle: Compatible (not included)
Charger: 42V 4A
Charge Time: 5 hours (0–100%)
Lights: Front and rear integrated
Smart Features: Uphill Start Assist, E-Shift, Autoshift, Ride Tune, 4G/GPS, Unusual Activity Detection, E-lock, Hold Mode, Remote Notification
